Double side Grinding /Lapping Machine
About Fine Grinding:
High precision surface grinding or fine grinding is a super finishing process performed by removing material from two surfaces of a component resulting in extremely precise geometric accuracy and surface finish. Typically, it is the last grinding step of a mechanical production chain utilized to improve and/or correct the geometry of parts coming from sintering, sawing, molding or similar operations. Depending on the application, the stock removal also can be taken from just one surface.

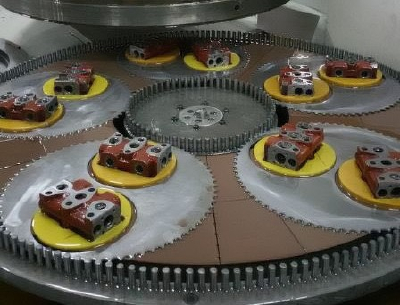

When the machine is working, upper and lower grinding discs as well as the planet wheel rotate simultaneously to drive work pieces to do reciprocating planet motion between the two grinding plates. Various grinding materials such as super hard abrasive: Diamond grinding plates, CBN(cubic boron nitride) grinding plates; Conventional abrasives: Cast iron plates, GC plates, etc can be adopted for different requirements of various products, so as to achieve double side precision grinding on work pieces made from various materials. Our equipment take advanced probe side measurement and Sony size measuring controller to realize real-time online measurement control on processed work pieces.
● Features:
1. High strength cast iron machine body
2. Three independent adjustable driving motors are applied to upper disc, lower disc and inner ring
3. Upper working disc can be manually or automatically swing out
4. Pneumatic control
5. Digital size control system
6. Inner ring rotates under servo driving
7. Semi-automatically loading and unloading device can be configured
8. Constant temperature cooling and filtering system
9. Touch screen control interface
10. Compressed protection for upper working disc
11. Strong fault diagnosis function
12. A plurality of functions for selection
13. No or less maintenance, simple and convenient operation
14. Customized processing solution, to improve product capacity
Typical client we have served:
AVIC: The top one in Chinese motor engine
MIBA: The words famous one in powder metallurgy
SEDAL: The words famous one in high precision ceramic
GKN: The words famous one in powder metallurgy
ANADOLU: The Turkish research center in ceramic material
Etc
- Place of Origin: China
- Brand Name:
- Model Number: SKF-GMM
Application fields:
Hydraulic elements: | Blade pump,steering valve, plunger pump, gasoline pump,hydraulic motor, etc. |
Compressor parts: | Air condition compressor blade, piston, cylinder, refrigerator compressor valve plate, etc. |
Engine parts | Internal combustor part, booster pump part, oil nozzle/ oil pump part, etc Various hard alloy blades, high precision bearing, sealing piece, watch part, ceramic valve core, magnetic material, etc |
Any other hard and brittle materials which required a high precision surface quality |
